Energy Storage Drawer Cabinet Production Line Technical Overview

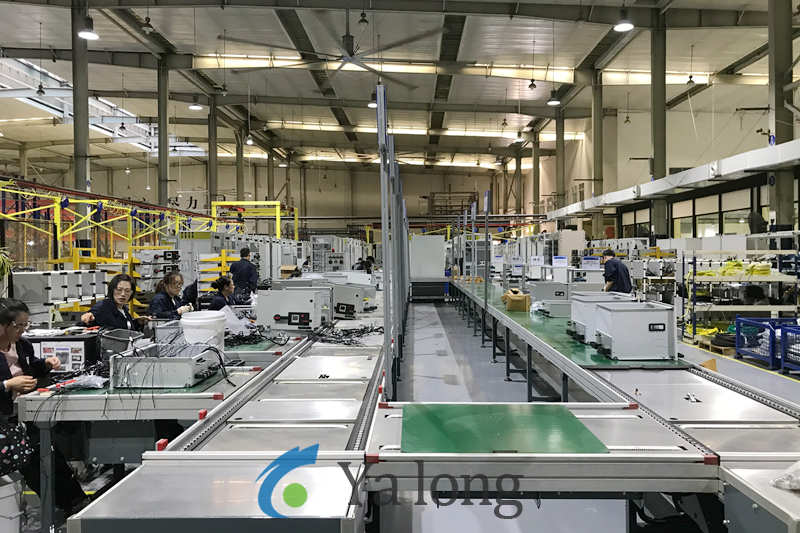

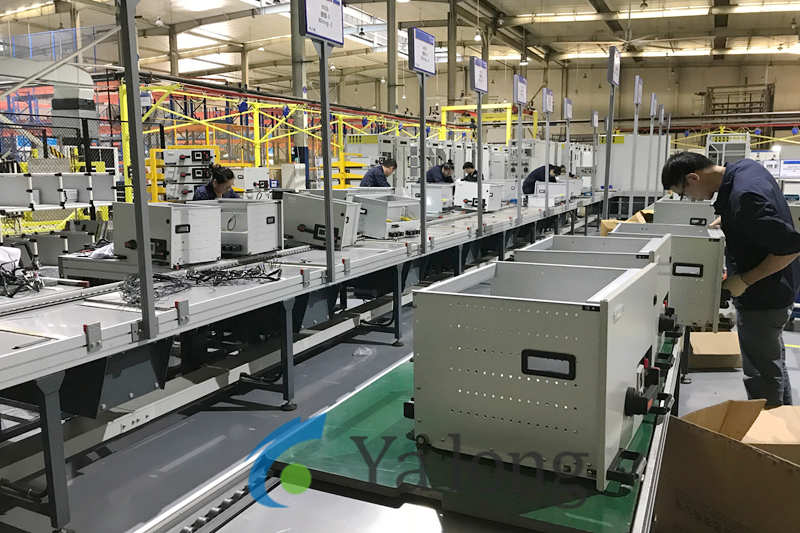

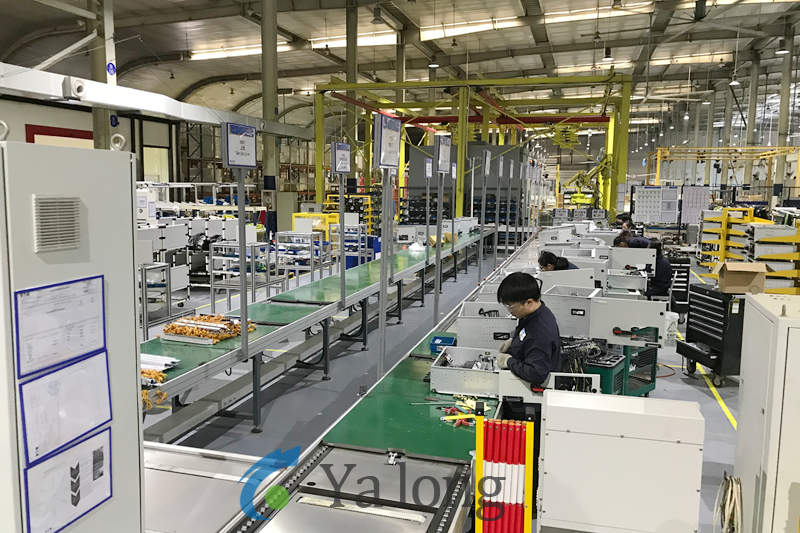

Core Conveying System
- Dual-Speed Chain Conveyor Lines + Roller Conveyor Lines + AGVs
- Eliminate material handling blind spots
- Adapt to cabinets of 300–2000mm (L/W/H)
Automated Assembly Modules
1. Cabinet Welding
- Robotic Welding Station:
- Laser/Arc welding for cold-rolled steel frames
- Positioning accuracy: ±0.05mm
- Structural strength: ≥200MPa
2. Component Fastening
- Automated Screwdrivers + Power-Assist Robotic Arms
- Standardized installation of:
- Battery modules
- Guide rails
- BMU/ESU trays
- Torque control: ±0.1Nm

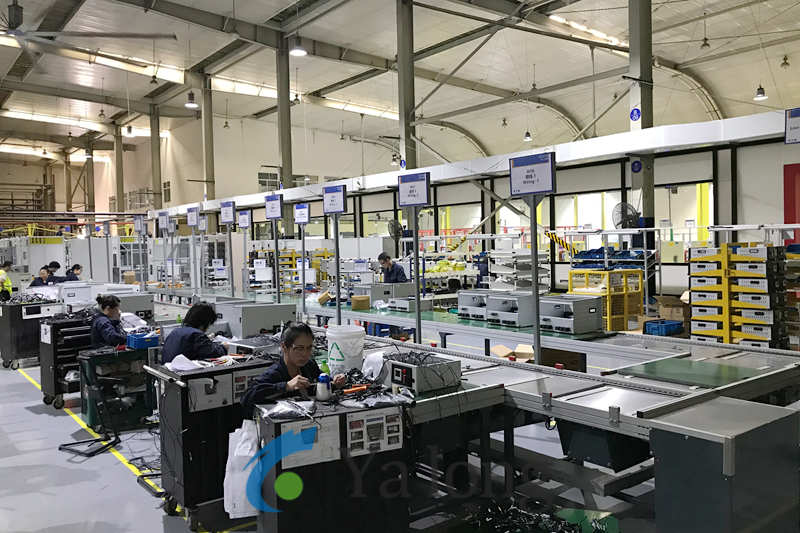

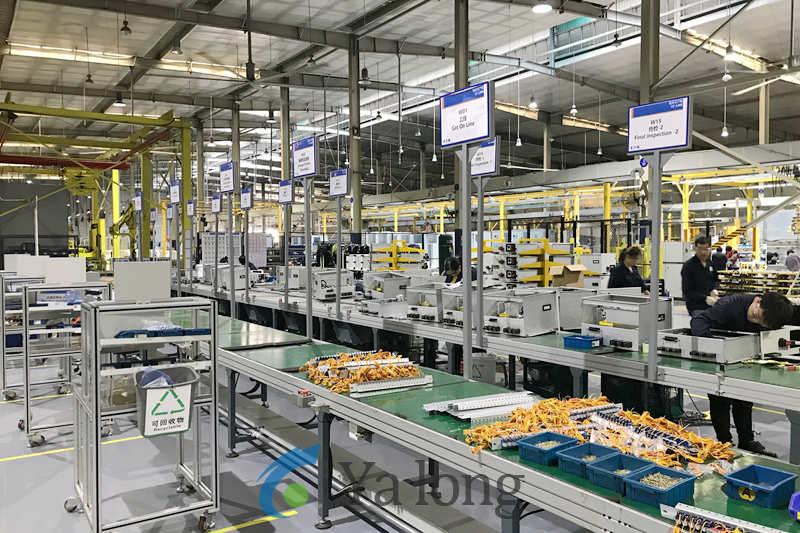

3. Wiring Assistance
- Semi-Auto Wiring Platform:
- 2D/3D visual positioning
- Harness routing guides & fixtures
- Wiring consistency: ≥98%
